AIM4000 Autosampler

Setting the bar in innovative autosampler design. Holds 4 sample racks and 1 standards rack.

The AIM4000 autosampler* is the newest autosampler with a design that has the electronics in the upper gantry away from sample and wash fluids optimising the available footprint for the use of samples and standards.

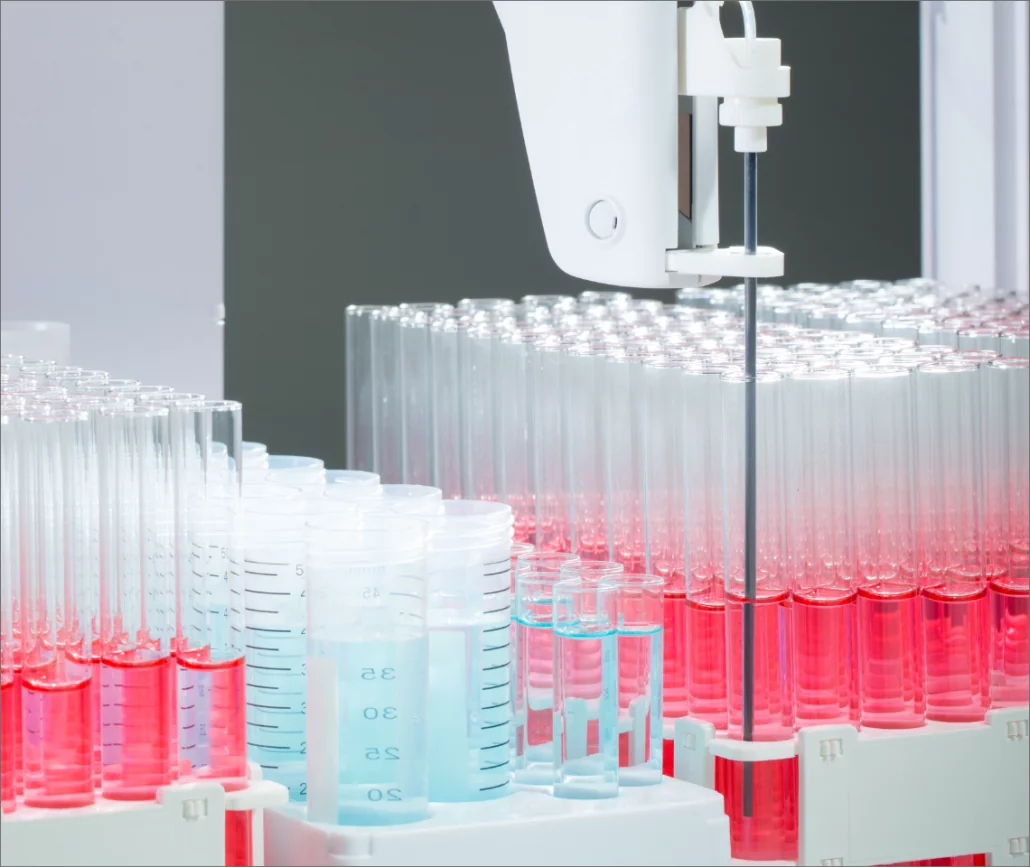

The standards and wash station are centrally located to minimise probe travel between sample and wash. This also allows those sample racks not being accessed to be conveniently swapped out during a run. A smart sampler cover option neatly integrates into the autosampler chassis and takes up no additional space.

 * Not available for sale for sample introduction into an atomic spectroscopy analyzer (such as an ICP-OES, ICP-MS or AAS)

Technical Specifications

Key Specifications
Sample Capacity	Up to 360 samples and 34 standards Up to 8 x 96 well microtitre plates and 34 standards
Maximum vial height	150mm

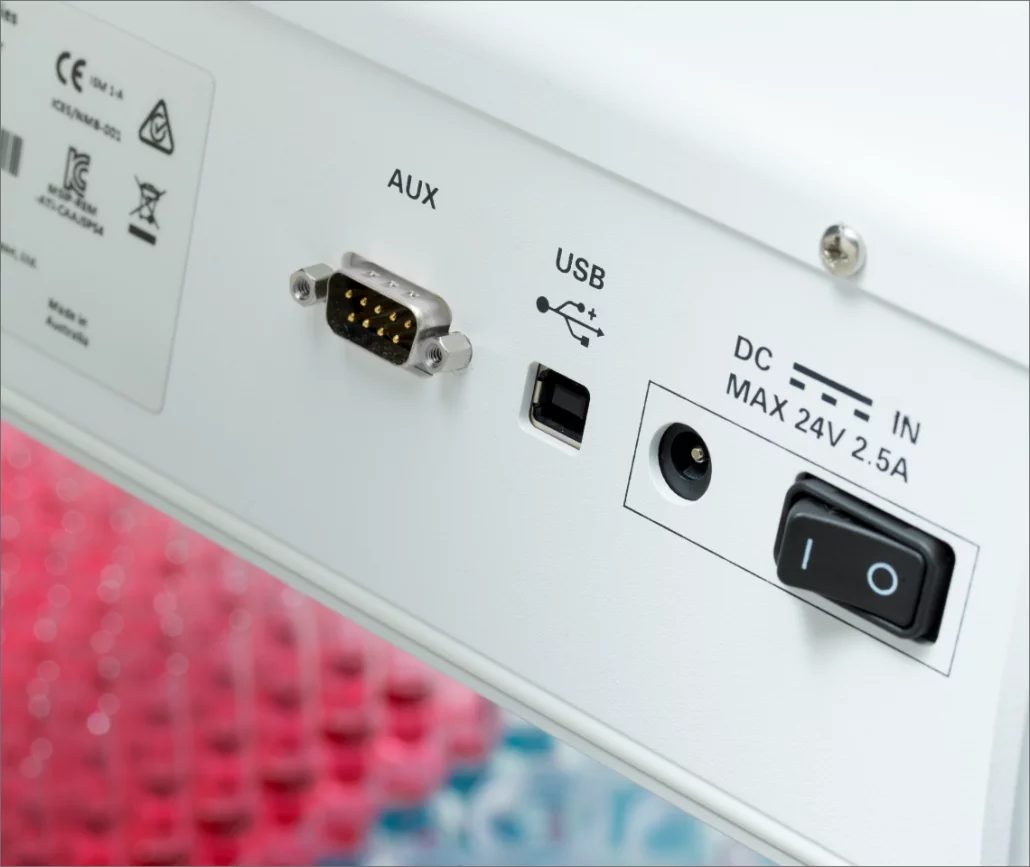

Communication ports	Host: 1 x USB Aux: 1 x RS485 Up to 3 x Relay contacts Up to 3 x digital Inputs /outputs
Power supply	24VDC, 2.5A
Dimensions	60cm L x 36.3cm D x 51.0cm H 23.6″ L x 14.3″ D x 20.1″ H
Weight	15 kg (33lbs)

Accessories

• Range of sample racks
• Range of standards racks
• Range of sample probes
• Range of wash pumps
• Range of wash stations
• Range of probe guides
• Protective cover
